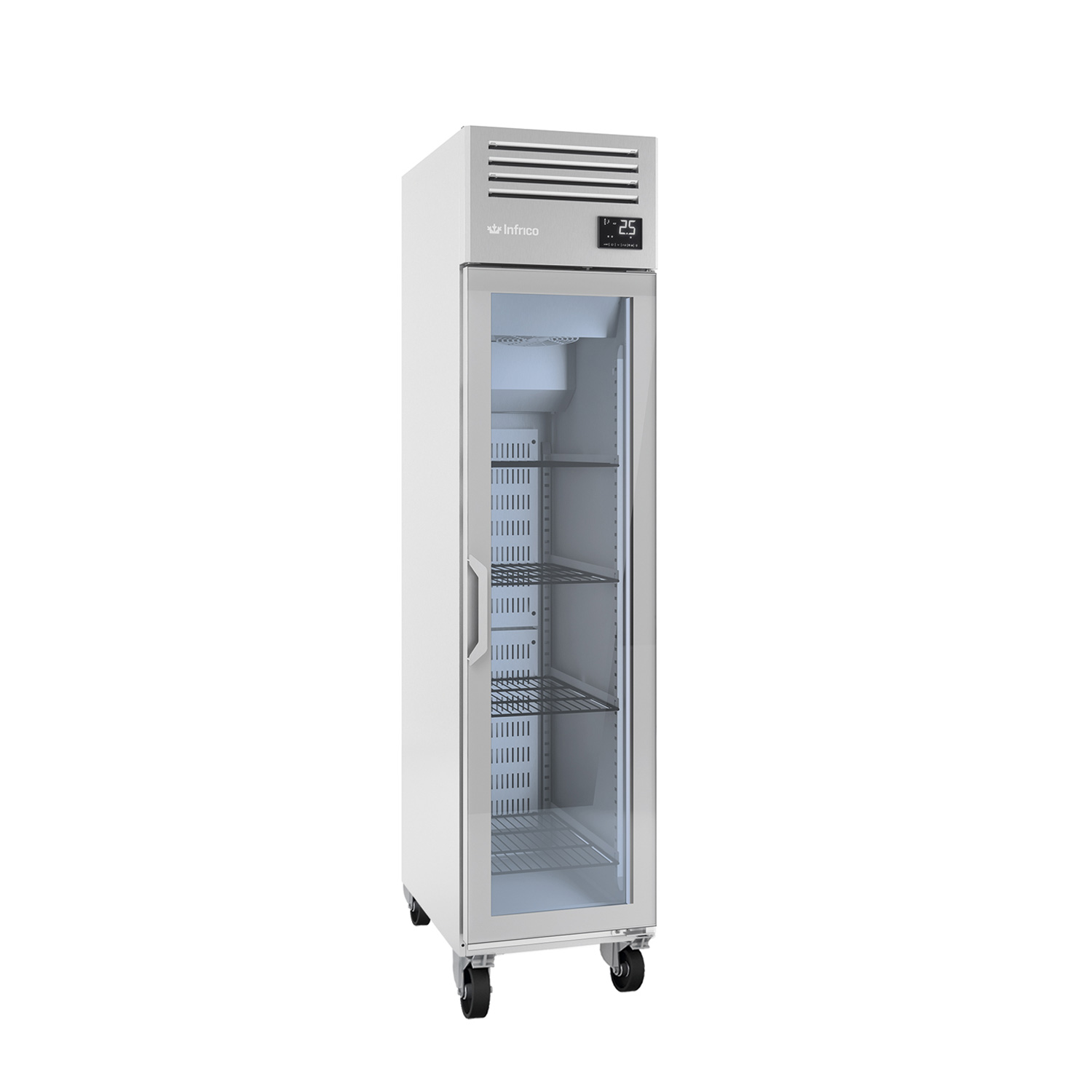

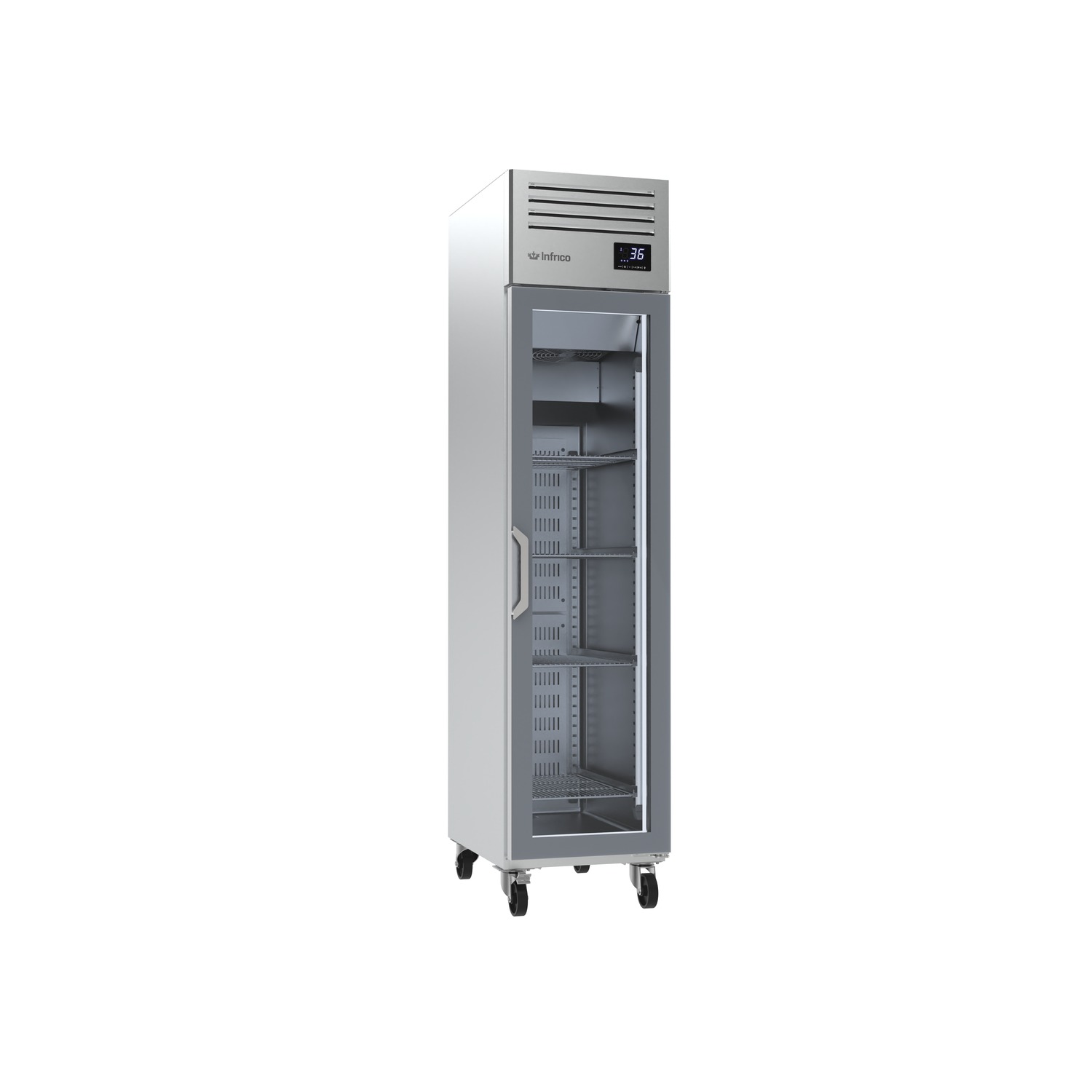

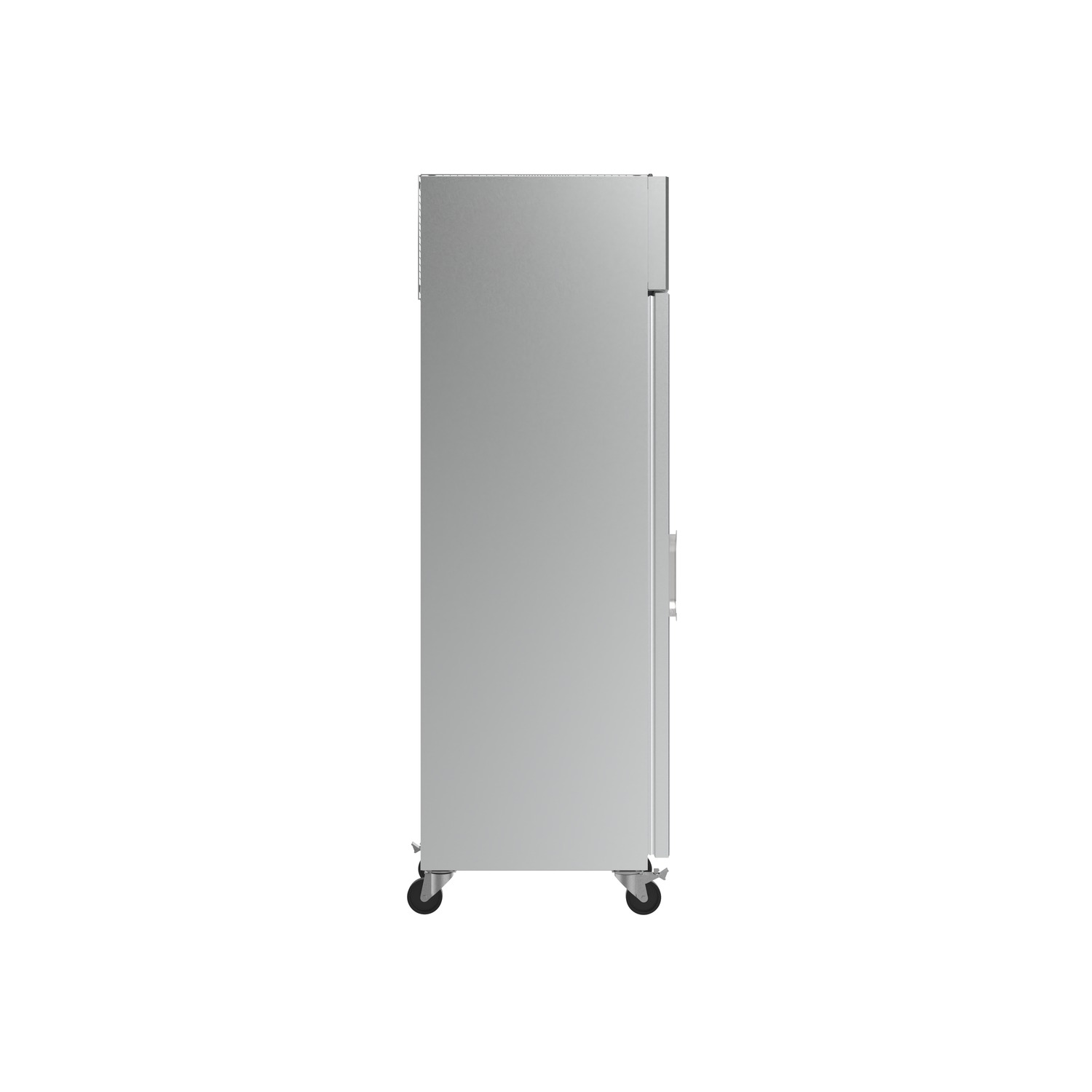

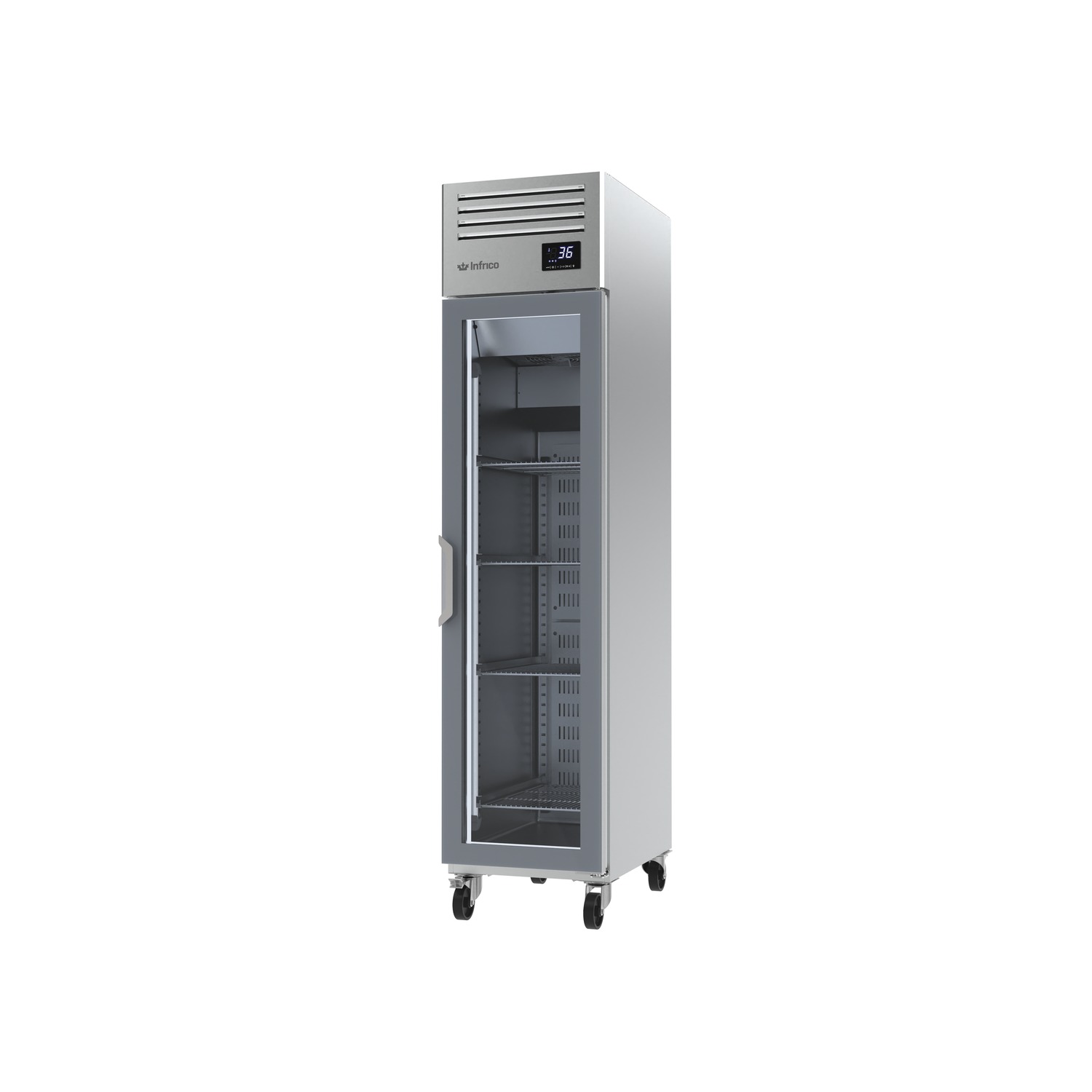

IRR-AGN300CR
AGN Series
| REFRIGERATION |
REFRIGERANT R290
|
| ELECTRICAL |
Cord and NEMA 5-15P plug, electrical connection is 115V / 1ph / 60Hz |
| SHELVING | Plastic coated reinforced wire shelves hold up 155 lb (CR Models) |
| DOORS |
Door built-in Thermopane double glass (Refrigerators models)
|
| OPTIONS |
Stainless Steel wire shelves
Stainless Steel tray divider
Additional slide kits
Set of 6” legs, height adjustable from 5” to 8” |
CAD & DOWNLOADS
Description
Doors
Doors with integrated dual sided handle and stay open hinge.
Four-chamber flat “cleanless” snap-in door gasket easy to remove.
Field revesible doors
Refrigeration
Hot gas defrost (BT).
Electronic fans.
Air cooled condensation system.
Forced air evaporation system.
Evaporative tray without electrical heater for a better energy class.
Refrigerant: 134 A
Hot gas defrost (BT).
Electronic fans.
Air cooled condensation system.
Forced air evaporation system.
Evaporative tray without electrical heater for a better energy class.
Refrigerant: 134 A
Doors
Doors with integrated dual sided handle and stay open hinge.
Four-chamber flat “cleanless” snap-in door gasket easy to remove.
Field revesible doors
Cad & Revit files
Cad & Revit files
SPECIFICATIONS
SPECIFICATIONS
 Width |  Depth |  Height |  Doors |  Shelves |  [ºF] |  [ft 3 ] |  [HP] |  [Amps] 115V |  [Lbs] |  [$] |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| IRR-AGN300CR | 19 | 27-7/8 | 82-1/16 | 1 | 4 | 36/43 ºF | 11.5 | 1/3 | 4.3 | 269 | 9260 |
| IRR-AGN301 | 19 | 27-7/8 | 82-1/16 | 1 | 3 | 33/38 ºF | 11.5 | 1/3 | 4.1 | 265 | 7900 |
| IRR-AGN301BT | 19 | 27-7/8 | 82-1/16 | 1 | 3 | 0 | 11.5 | 3/8” | 5.6 | 265 | 9525 |
| IRR-AGN600CR | 38-3/8 | 27-7/8 | 82-1/16 | 2 | 8 | 36/43 ºF | 26.30 | 3/8 | 5.8 | 392 | 12600 |
| IRR-AGN602 | 38-3/8 | 27-7/8 | 82-1/16 | 2 | 6 | 33 /38 ºF | 26.30 | 3/8 | 5.6 | 320 | 11600 |
| IRR-AGN602BT | 38-3/8 | 27-7/8 | 82-1/16 | 2 | 6 | 0 ºF | 26.30 | 3/4 | 8.5 | 1.05 | 13250 |
| IRR-AGN602MX | 38-3/8 | 27-7/8 | 82-1/16 | 2 | 6 | 33 / 38 / 0 ºF | 11.5 / 26.30 | 1/3”- 3/8” | 8.08 | 392 | 15900 |
