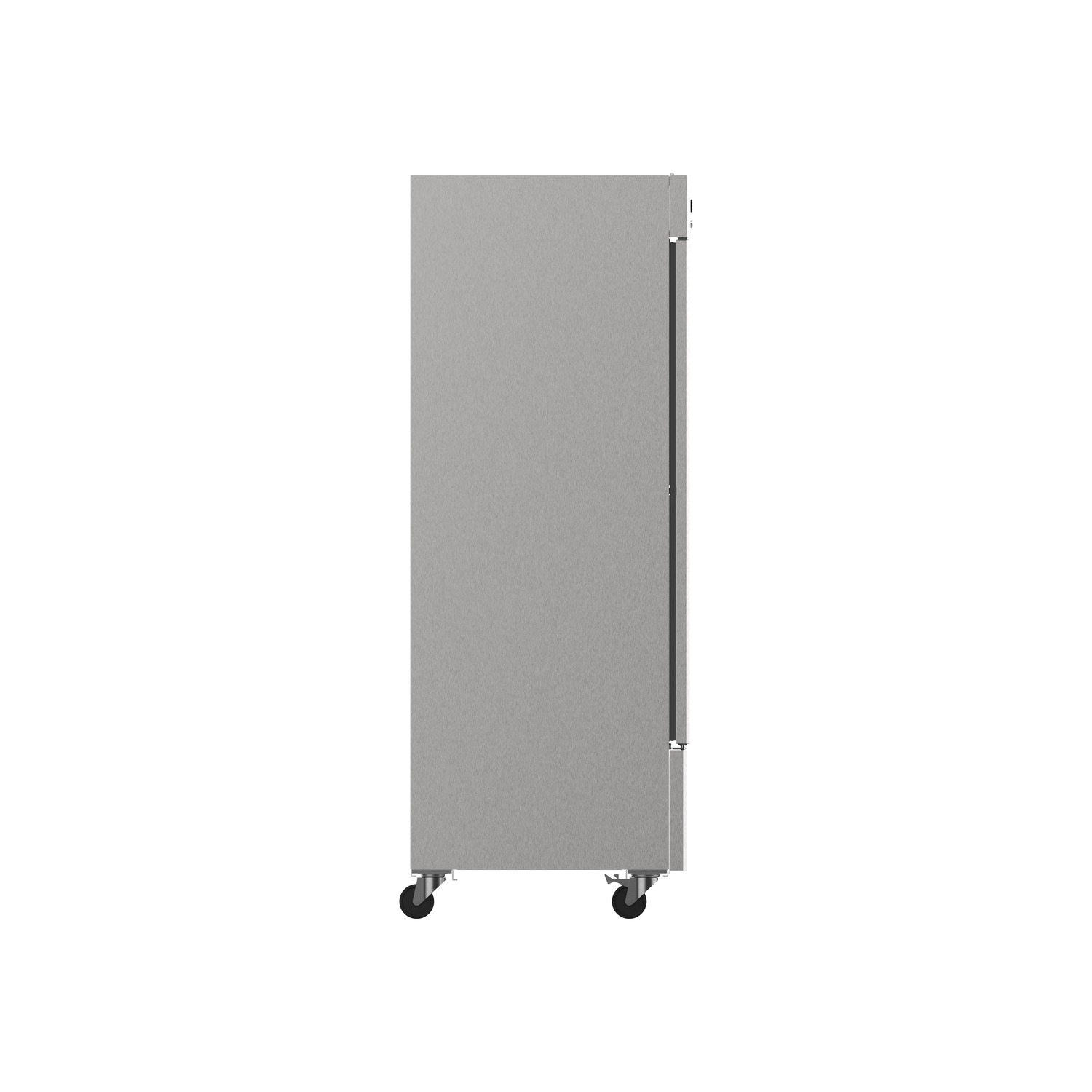

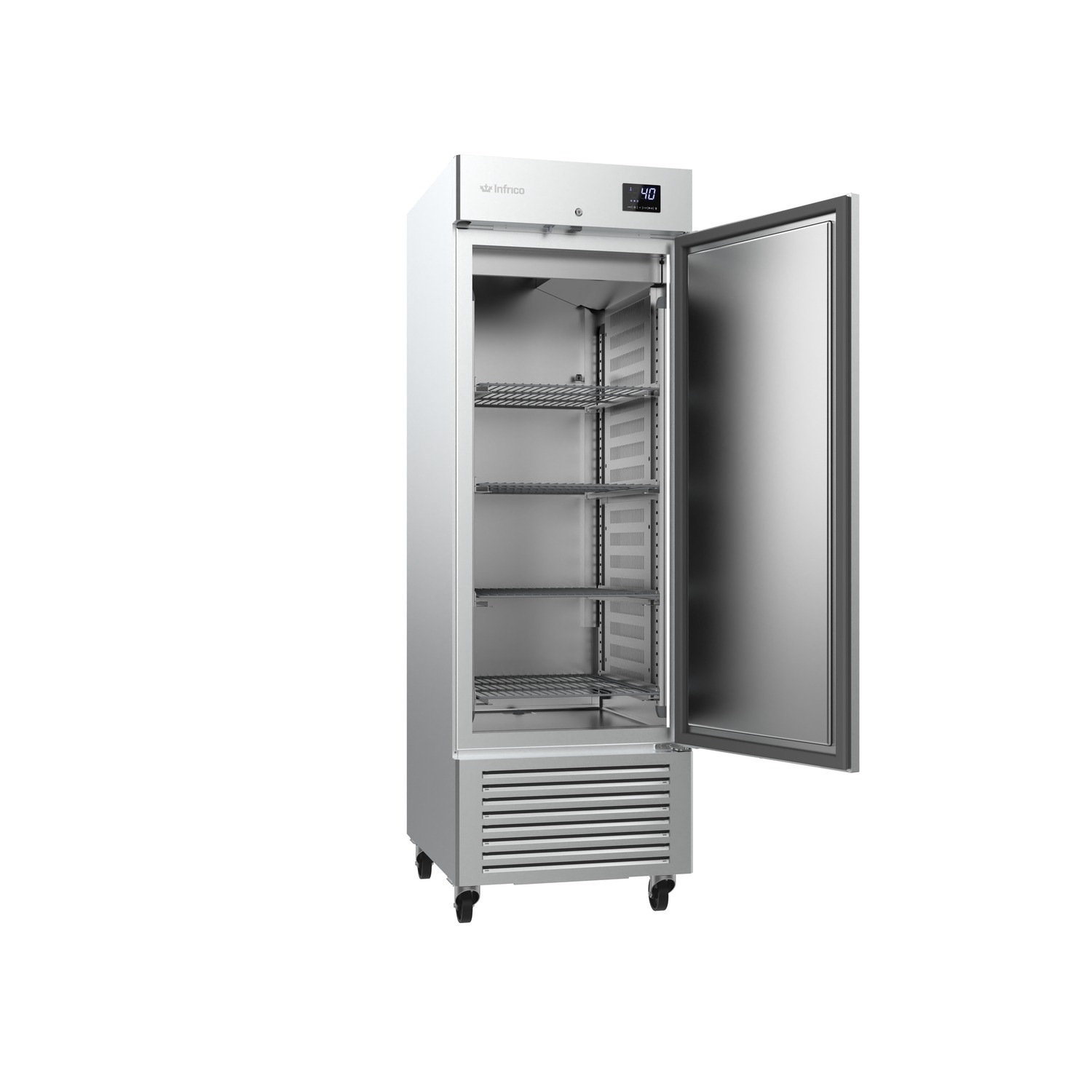

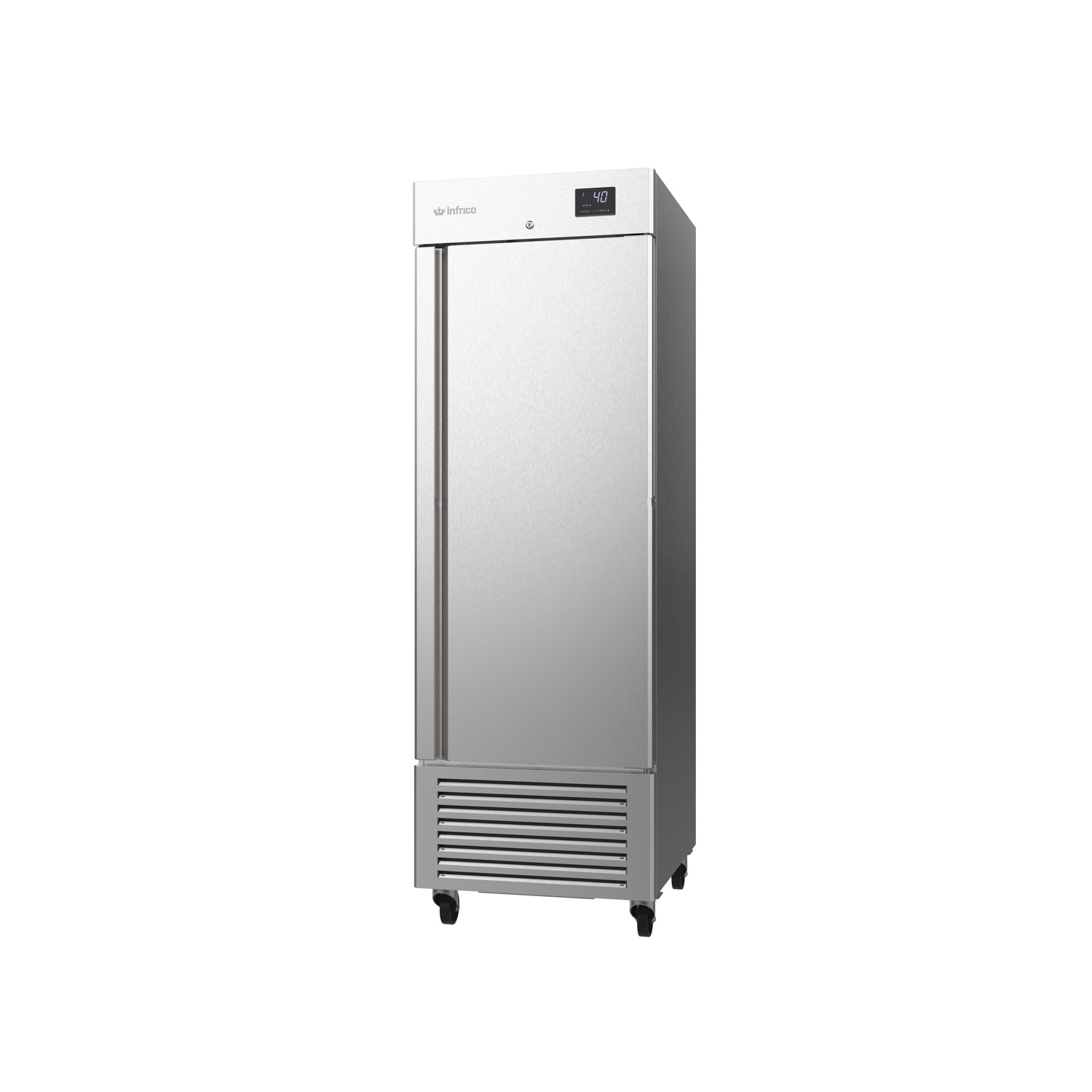

IRR-AN23
1 Solid Door Refrigerator – 23 ft3
REFRIGERATION | Forced air refrigeration and Capillary system |
ELECTRICAL | Cord and NEMA 5-15P plug, electrical connection is 115V / 1ph / 60Hz |
DOE | Hydrocarbon R-290 |
AMBIENT | 100F |
CAD & DOWNLOADS
Description
– Electronic fan motors
– AISI 430 stainless steel
– Non electric condensate pan
– LED lighting
– Internal drain plug for easy cleaning
– Self closing doors with stay open feature
– Doors locks
– Full-height door opening (23”x53”).
– New grill design with tray slide included
– Black caster, 4” diameter
– Front 4″ locking casters
– Sealed Interior floors and rounded cabinet corners
– Triple chamber snap in door gaskets
– Field reversible doors
– Stainless steel heavy duty hinges
– Forced air refrigeration system, capilary system.
– Digital temperature controller with automatic defrost
– Evaporator coil coated with anti-corrosion material.
– Hydrocarbon R-290 refrigerant gas
– AISI 430 stainless steel
– Non electric condensate pan
– LED lighting
– Internal drain plug for easy cleaning
– Self closing doors with stay open feature
– Doors locks
– Full-height door opening (23”x53”).
– New grill design with tray slide included
– Black caster, 4” diameter
– Front 4″ locking casters
– Sealed Interior floors and rounded cabinet corners
– Triple chamber snap in door gaskets
– Field reversible doors
– Stainless steel heavy duty hinges
– Forced air refrigeration system, capilary system.
– Digital temperature controller with automatic defrost
– Evaporator coil coated with anti-corrosion material.
– Hydrocarbon R-290 refrigerant gas
SPECIFICATIONS
SPECIFICATIONS
![]() Width | ![]() Depth | ![]() Height | ![]() Doors | ![]() Shelves | ![]() [ºF] | ![]() [ft 3 ] | ![]() [HP] | ![]() [Amps] 115V | ![]() [Lbs] | ![]() [$] |
|
---|---|---|---|---|---|---|---|---|---|---|---|
IRR-AN23 | 27 | 31-1/8 | 83-3/8 | 1 | 3 | 33ºF/38ºF | 23.0 | 1/4 | 3.8 | 306 | 5850 |
IRR-AN49 | 54-1/2 | 31-1/8 | 83-3/8 | 2 | 6 | 33ºF/38ºF | 49.0 | 1/3 | 4.0 | 432 | 7875 |
IRR-AN67 | 82 | 31-1/8 | 83-3/8 | 3 | 9 | 33ºF/38ºF | 67.0 | 1/2 | 6.1 | 606 | 10800 |
