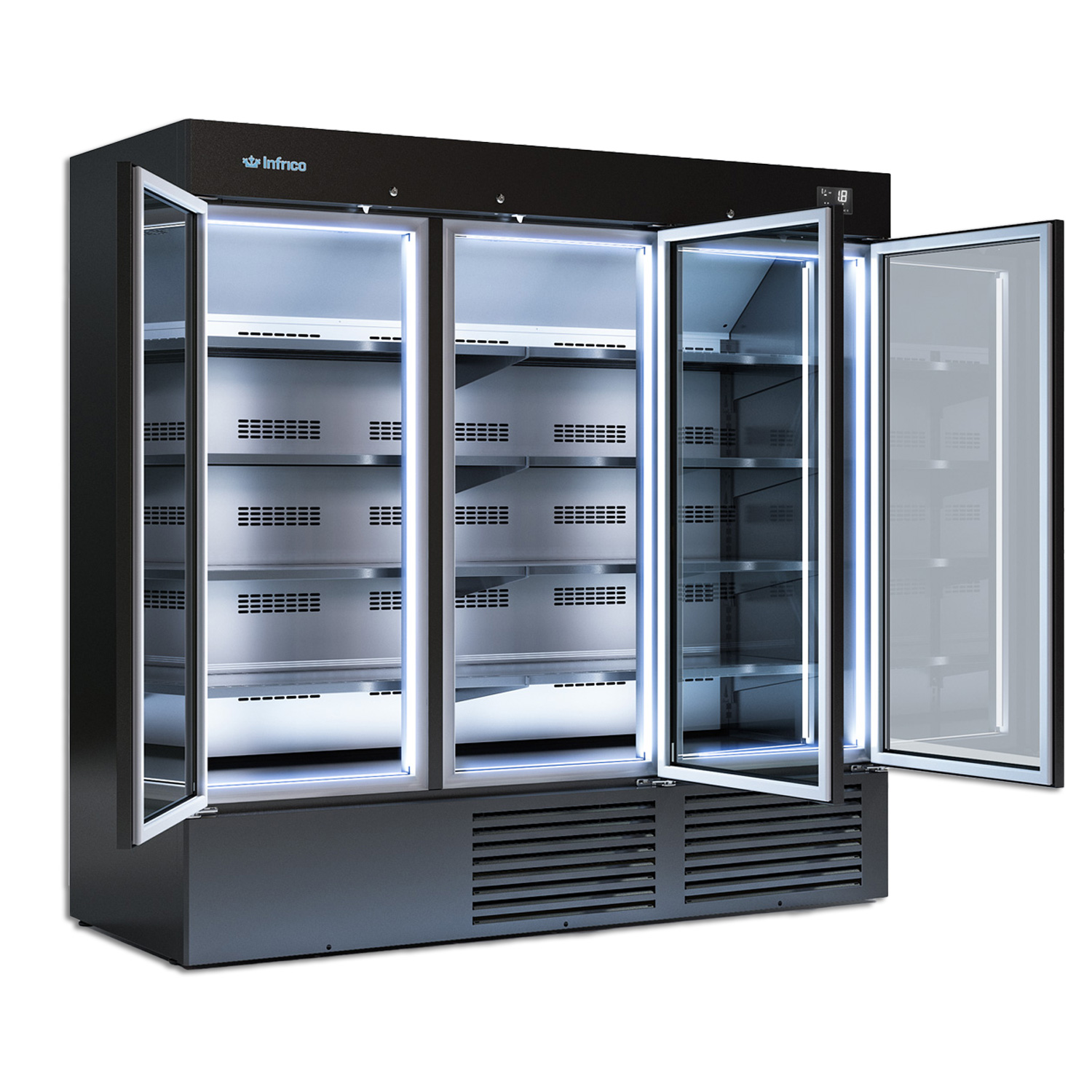

IMD-ERC200PHBT
Hinged Doors merchandiser – 3 glass door
| ELECTRICAL | Cord and NEMA 5-15P plug, Electrical connection is 115V / 1ph / 60Hz. |
| DOE | Hydrocarbon R-290 |
| OPTIONS Cap.10 (Accessories & parts) | Set of 4’’ casters |
CAD & DOWNLOADS
Description
New control system
New digital controller with greater precision in temperature control.
Easier to adjust the temperature range we want to achieve.
New digital controller with greater precision in temperature control.
Easier to adjust the temperature range we want to achieve.
Energy efficiency
Higher energy rating, due to optimized air circulation, R290 refrigeration and electronic fans.
Producing more efficient temperature distribution.
Lighting
LED lighting incorporated, reducing energy energetic consumption between 80% and 90% compared respect to a traditional ligth bulb.
Cad & Revit files
Cad & Revit files
SPECIFICATIONS
SPECIFICATIONS
 Width |  Depth |  Height |  Doors |  [ºF] |  [ft 3 ] |  [HP] |  [Amps] 115V |  [Lbs] |  [$] |
|
|---|---|---|---|---|---|---|---|---|---|---|
| IMD-NEC501RV | 27 | 27-3/8 | 79-1/8 | 1 | 36ºF/46ºF | 15 | 1/3 | 5 | 300 | 12500 |
| IMD-NEC501FV | 27 | 27-3/8 | 79-1/8 | 1 | 5ºF/-13ºF | 15 | 3/4 | 9 | 300 | 9000 |
| IMD-ERC130PH | 54-1/2 | 33-1/8 | 78-7/8 | 2 | 39ºF/46ºF | 40 | 3/4 | 9.2 | 650 | 14000 |
| IMD-ERC200PH | 81-7/8 | 33-1/8 | 78-7/8 | 3 | 39ºF/46ºF | 63 | 1 | 10.8 | 850 | 19000 |
| IMD-ERC130PHBT | 54-1/2 | 33-1/8 | 78-7/8 | 2 | - 0ºF | 40 | 1-1/4 | 16 | 650 | 19500 |
| IMD-ERC200PHBT | 81-7/8 | 33-1/8 | 78-7/8 | 3 | - 0ºF | 63 | 1-1/4 + 1-1/4 | 32 | 850 | 19500 |
